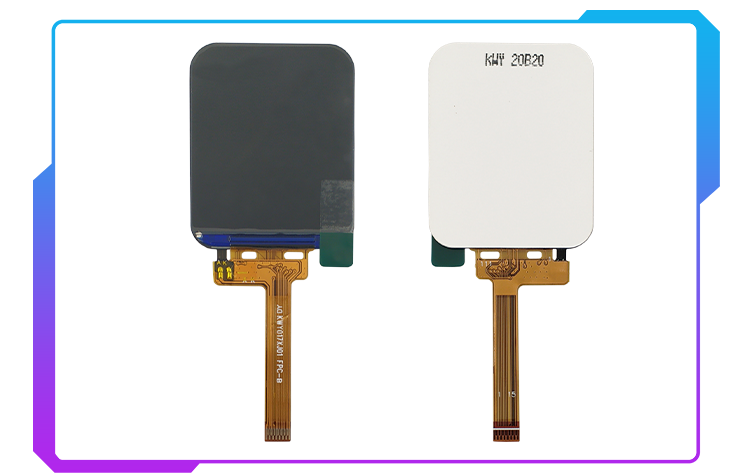

15Pin SPI LCD TFT Display Module Screen 240x280 JD9851A Controller Custom

Name: 15Pin SPI LCD TFT Display Module Screen 240x280 JD9851A Controller Custom
Brand: Formike
Price: 1 USD

Quality 15Pin SPI LCD TFT Display Module Screen 240x280 JD9851A Controller Custom for sale

Model Number : KWH017ST01-F01

Controller Ic : JD9851A

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Product Name : 1.69 LCD Display TFT Screen 240*280 SPI LCD Module

Payment Terms : T/T, L/C, Credit card, Cash

Resolution : 240 x 280

Display Size : 1.69 inch

MOQ : 1 piece

Interface : 15Pin, 4W SPI

Display Type : IPS TFT Display

Operating Temperature : -20°C to 70°C

Place of Origin : China

Dimensions : 30.17mm x 37.68mm x 1.53mm

Brand Name : Formike

Supply Voltage : 3.1V

Color : Color

Supply Ability : 5000000000 pieces/year

Viewing Angle : All

Packaging Details : Tray + Inner Box + Carton

Contact Now

1.69 LCD Display TFT Screen 240*280 SPI LCD Module

15Pin SPI LCD TFT Display Module Screen 240x280 JD9851A Controller Custom

Product Name	1.69 LCD Display TFT Screen 240*280 SPI LCD Module
LCD Size	1.69 Inch TFT LCD Display Module or 1.7 Inch
Display Mode	IPS
Resolution	240x280
Outline Dimension (mm)	30.17x37.68x1.53
Active Area (mm)	27.97x32.63
Dot pitch (mm)	0.11655x0.11655
Viewing Direction	All
Interface	SPI Interface, 15 Pin
Driver IC	JD9851A
Brightness (Cd/m²)	350
Contrast Ratio	800:1
Backlight	3 White LED
Backlight Supply (Current/Voltage)	60mA 3.1V
Touch Screen	Without (Optional with)

* KWH017ST01-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x280 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

15Pin SPI LCD TFT Display Module Screen 240x280 JD9851A Controller Custom
